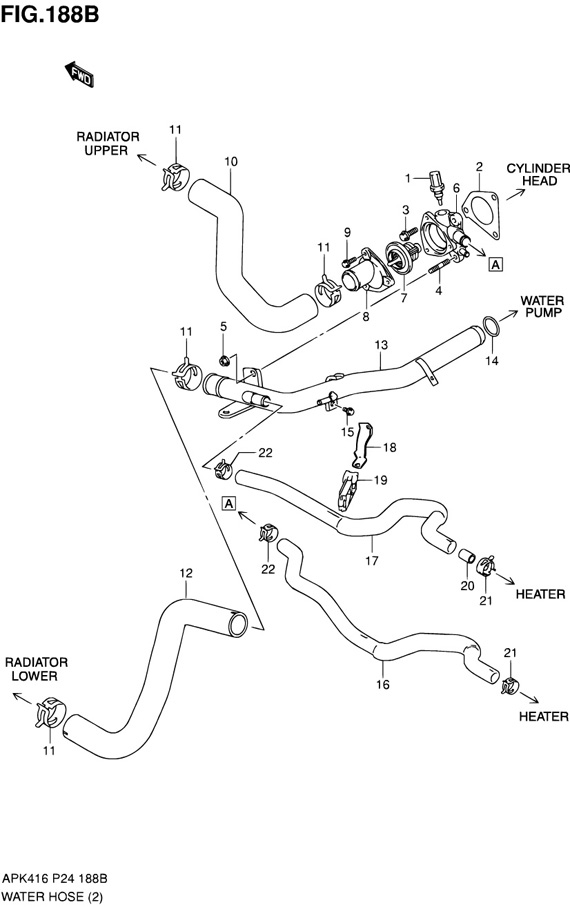

| 1 |
13650-73H00 |
SENSOR, WATER TEMP |
|
1 |
| 2 |
17699-54LA0 |
GASKET, WATER OUTLET CAP |
|
1 |
| 3 |
01550-0825A |
BOLT |
|
1 |
| 4 |
01421-0825A |
STUD BOLT |
|
2 |
| 5 |
08316-1008A |
NUT |
|
2 |
| 6 |
17690-54LA0 |
CASE, THERMOSTAT |
|
1 |
| 7 |
17670-66M00 |
THERMOSTAT, WATER |
|
1 |
| 8 |
17561-54LA0 |
CAP, WATER THERMOSTAT |
|
1 |
| 9 |
01550-0620A |
BOLT |
|
3 |
| 10 |
17852-61M00 |
HOSE, RADIATOR INLET |
THERMOSTAT CAP TO RADIATOR UPPER |
1 |
| 11 |
09401-35403 |
CLIP |
|
4 |
| 12 |
17854-61M00 |
HOSE, RADIATOR OUTLET |
RADIATOR LOWER TO WATER INLET PIPE |
1 |
| 13 |
17840-54LA0 |
PIPE, WATER INLET |
|
1 |
| 14 |
09280-28008 |
O RING (D:3.5,ID:27.7) |
|
1 |
| 15 |
01550-0612A |
BOLT |
|
1 |
| 16 |
17871-54P00 |
HOSE, HEATER INLET |
THERMOSTAT CASE TO HEATER |
1 |
| 17 |
17872-54P00 |
HOSE, HEATER OUTLET |
HEATER TO WATER INLET PIPE |
1 |
| 18 |
17875-78M00 |
BRACKET, HEATER HOSE |
|
1 |
| 19 |
17876-72L00 |
CLAMP, HEATER HOSE |
|
1 |
| 20 |
17879-54LA0 |
SPACER, HTR HOSE |
|
1 |
| 21 |
09401-21405 |
CLIP |
|
2 |
| 22 |
09401-21405 |
CLIP |
|
2 |
