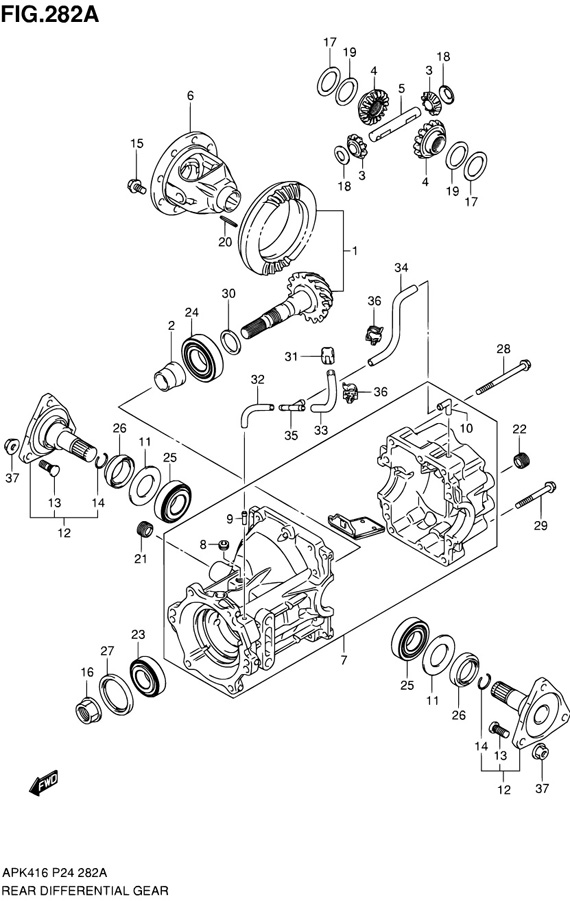

ЗАДНИЙ ДИФФЕРЕНЦИАЛ (4WD)

Выноска	Номер детали	Название детали	Примечания	Кол-во
1	27300-61850	BEVEL PINION & GEAR SET		1
2	27315-63J00	SPACER, BEVEL PINION		1
3	27331-78FJ1	PINION, DIFFERENTIAL		2
4	27341-61M00	GEAR, DIFF		2
5	27351-62B00	SHAFT, DIFF SIDE PINION		1
6	27411-57L00	CASE, DIFF		1
7	27450-57L00	CARRIER ASSY, DIFF		1
8	09246-08004	.PLUG (3/8PT,H:4)		1
9	09364-06007	.UNION		1
10	09364-08017	.UNION		1
11	27453-63J10	SHIM, DIFF SIDE (T:0.45)		AR
11	27453-63J00-230	SHIM, DIFF SIDE (T:2.30)		AR
11	27453-63J00-235	SHIM, DIFF SIDE (T:2.35)		AR
11	27453-63J00-240	SHIM, DIFF SIDE (T:2.40)		AR
11	27453-63J00-245	SHIM, DIFF SIDE (T:2.45)		AR
11	27453-63J00-250	SHIM, DIFF SIDE (T:2.50)		AR
11	27453-63J00-255	SHIM, DIFF SIDE (T:2.55)		AR
11	27453-63J00-260	SHIM, DIFF SIDE (T:2.60)		AR
11	27453-63J00-265	SHIM, DIFF SIDE (T:2.65)		AR
11	27453-63J00-270	SHIM, DIFF SIDE (T:2.70)		AR
12	27780-61M00	FLANGE, DRIVE SHAFT		2
13	09119-10087	.BOLT (14X25)		6
14	09381-22015	.RING		2
15	09103-10309	BOLT (10X16)		8
16	09159-24011	NUT		1
17	09160-35006	WASHER (35X46X0.9)		AR
17	09160-35008	WASHER (35X46X0.95)		AR
17	09160-35002	WASHER (35X46X1)		AR
17	09160-35009	WASHER (35X46X1.05)		AR
17	09160-35003	WASHER (35X46X1.1)		AR
17	09160-35010	WASHER (35X46X1.15)		AR
17	09160-35004	WASHER (35X46X1.2)		AR
18	09164-15003	WASHER		2
19	09164-35003	WASHER		2
20	09205-05016	PIN (5X32)		1
21	09246-16010	PLUG		1
22	09246-16010	PLUG		1
23	09265-25034	BEARING (25X62X18.25)		1
24	09265-30010	BEARING (30X72X20.75)		1
25	09265-35013	BEARING (35X62X20)		2
26	09283-35057	OIL SEAL (35X52X14)		2
27	09283-50010	OIL SEAL (49.9X64X7)		1
28	01550-0855C	BOLT		6
29	01550-0890C	BOLT		4
30	09181-30001	SHIM (T:0.3)		AR
30	29521-74C00	SHIM (T:0.60)		AR
30	29521-74C10	SHIM (T:0.63)		AR
30	29521-74C20	SHIM (T:0.66)		AR
30	29521-74C30	SHIM (T:0.69)		AR
30	29521-74C40	SHIM (T:0.72)		AR
30	29521-74C50	SHIM (T:0.75)		AR
30	29521-74C60	SHIM (T:0.78)		AR
30	29521-74C70	SHIM (T:0.81)		AR
30	29521-74C80	SHIM (T:0.84)		AR
30	29521-74C90	SHIM (T:0.87)		AR
30	29521-75C10	SHIM (T:0.90)		AR
30	29521-75C20	SHIM (T:0.93)		AR
30	29521-75C30	SHIM (T:0.96)		AR
30	29521-75C40	SHIM (T:0.99)		AR
30	29521-75C50	SHIM (T:1.02)		AR
30	29521-75C60	SHIM (T:1.05)		AR
30	29521-75C70	SHIM (T:1.08)		AR
30	29521-75C80	SHIM (T:1.11)		AR
31	27991-65D01	PLUG, BREATHER		1
32	09352-50823-600	HOSE (5X8.2X600)	L:600->90	1
33	09352-70114-110	HOSE (7X11X110)		1
34	09352-70113-600	HOSE (7X11X600)	L:600->200	1
35	09367-08005	3 WAY		1
36	09403-11314	CLAMP		2
37	08316-1010B	NUT		6
