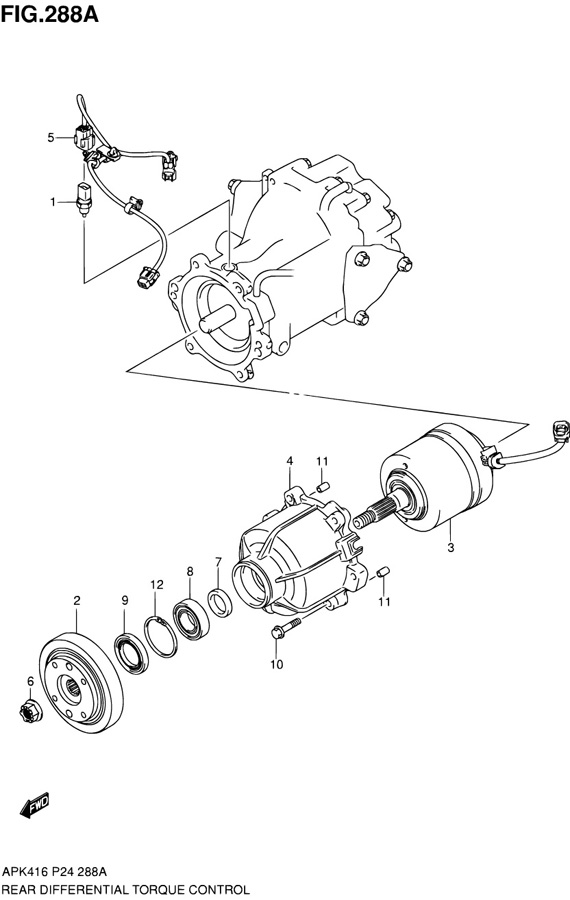

REAR DIFFERENTIAL TORQUE CONTROL (4WD)

REAR DIFFERENTIAL TORQUE CONTROL (4WD)

Выноска	Номер детали	Название детали	Примечания	Кол-во
1	13650-56B00	SENSOR, INLET AIR TEMP		1
2	27110-61M00	FLANGE, COMPANION		1
3	27610-79J01	COUPLING, REAR DRIVE		1
4	27611-79J00	CASE, COUPLING		1
5	27620-61M00	HARNESS ASSY, COUPLING		1
6	09159-16021	NUT		1
7	09180-25101	SPACER (25X38X6.5)		1
8	09262-25072	BEARING (25X52X15)		1
9	09283-35049	OIL SEAL (35X55X8)		1
10	01550-0835C	BOLT		6
11	04211-09149	PIN		2
12	08331-41529	CIRCLIP		1
