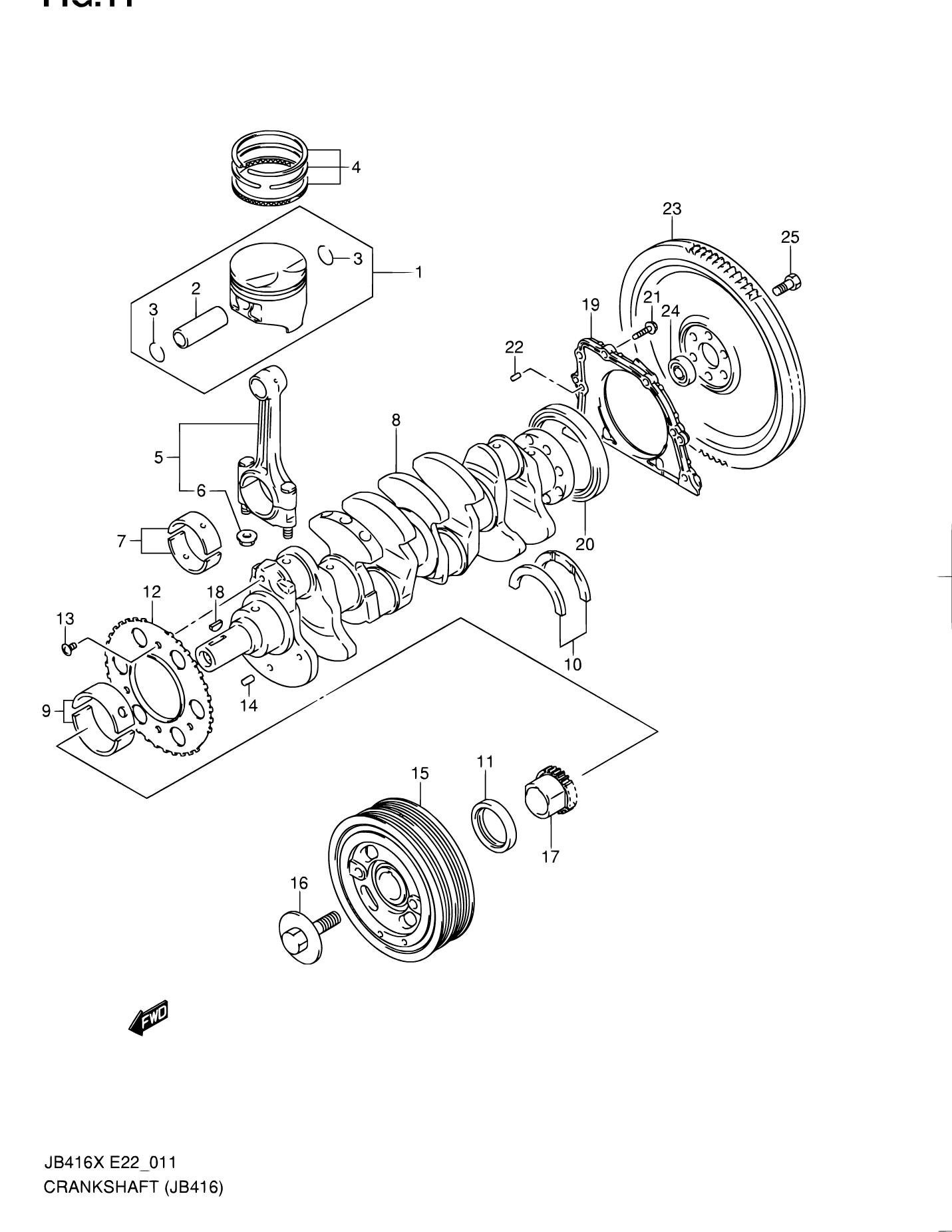

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
12100-54812 |
PISTON SET (STD) |
E02,E22,E53,E54 |
4 |
| 1 |
12100-54812-050 |
PISTON SET (OS:0.50) |
E02,E22,E53,E54 |
4 |
| 1 |
12100-54831 |
PISTON SET (STD) |
E09,E10,E24,E30,E43,E50, E85,E96 |
4 |
| 1 |
12100-54831-050 |
PISTON SET (OS:0.50) |
E09,E10,E24,E30,E43,E50, E85,E96 |
4 |
| 2 |
12151-85FA0 |
.PIN, PISTON |
|
4 |
| 3 |
09381-20004 |
.CIRCLIP |
|
8 |
| 4 |
12140-54GA0 |
RING SET, PISTON (STD) |
|
4 |
| 4 |
12140-54GA0-050 |
RING SET, PISTON (OS:0.50) |
|
4 |
| 5 |
12160-54GB0 |
CONNECTING ROD ASSY |
|
4 |
| 6 |
09159-08114 |
.NUT |
|
8 |
| 7 |
12100-69830-0A0 |
BEARING SET, CONNROD (GREEN) |
STD,T:1.5 |
4 |
| 7 |
12100-69830-0B0 |
BEARING SET, CONNROD (BLACK) |
STD,T:1.5 |
4 |
| 7 |
12100-69830-0C0 |
BEARING SET, CONNROD (NON COLOR) |
STD,T:1.5 |
4 |
| 7 |
12100-69830-0D0 |
BEARING SET, CONNROD (YELLOW) |
STD,T:1.5 |
4 |
| 7 |
12100-69830-0E0 |
BEARING SET, CONNROD (BLUE) |
STD,T:1.5 |
4 |
| 7 |
12100-69830-025 |
BEARING SET, CONNROD |
US:0.25,T:1.625 |
4 |
| 8 |
12221-54GB0 |
CRANKSHAFT |
|
1 |
| 9 |
12340-58BA0-0A0 |
BEARING SET (GREEN) |
STD,T:2 |
5 |
| 9 |
12340-58BA0-0B0 |
BEARING SET (BLACK) |
STD,T:2 |
5 |
| 9 |
12340-58BA0-0C0 |
BEARING SET (NON COLOR) |
STD,T:2 |
5 |
| 9 |
12340-58BA0-0Y0 |
BEARING SET (PURPLE) |
STD,T:2 |
5 |
| 9 |
12340-58BA0-0Z0 |
BEARING SET (BROWN) |
STD,T:2 |
5 |
| 9 |
12300-58820-0AA |
BEARING SET (RED/GREEN) |
US:0.25,T:2.125 |
5 |
| 9 |
12300-58820-0BA |
BEARING SET (RED/BLACK) |
US:0.25,T:2.125 |
5 |
| 9 |
12300-58820-0CA |
BEARING SET (RED) |
US:0.25,T:2.125 |
5 |
| 9 |
12300-58820-0YA |
BEARING SET (RED/PURPLE) |
US:0.25,T:2.125 |
5 |
| 9 |
12300-58820-0ZA |
BEARING SET (RED/BROWN) |
US:0.25,T:2.125 |
5 |
| 10 |
12300-60850 |
BEARING SET, CRANK THRUST |
STD,T:2.5 |
1 |
| 10 |
12300-60850-012 |
BEARING SET, CRANK THRUST |
OS:0.125,T:2.563 |
1 |
| 11 |
09283-41001 |
SEAL, OIL (41X53X6) |
|
1 |
| 12 |
12222-69G00 |
PLATE, SENSOR |
|
1 |
| 13 |
12223-69G00 |
SCREW (6X10) |
|
3 |
| 14 |
09205-05006 |
PIN (5X12) |
|
1 |
| 15 |
12610-64J00 |
PULLEY, CRANKSHAFT |
|
1 |
| 16 |
12619-69G01 |
BOLT |
|
1 |
| 17 |
12631-54G00 |
SPROCKET, CRANK TIMING |
|
1 |
| 18 |
08341-31059 |
KEY |
|
1 |
| 19 |
11341-69G10 |
HOUSING, OIL SEAL |
|
1 |
| 20 |
09283-83001 |
SEAL, OIL (83X103X8) |
|
1 |
| 21 |
09103-06282 |
BOLT (6X25) |
|
7 |
| 22 |
09206-06005 |
PIN (4X6X11) |
|
2 |
| 23 |
12620-54D00 |
FLYWHEEL |
|
1 |
| 24 |
12623-71C01 |
BEARING, INPUT |
|
1 |
| 25 |
09103-10305 |
BOLT (10X18.5) |
|
8 |
