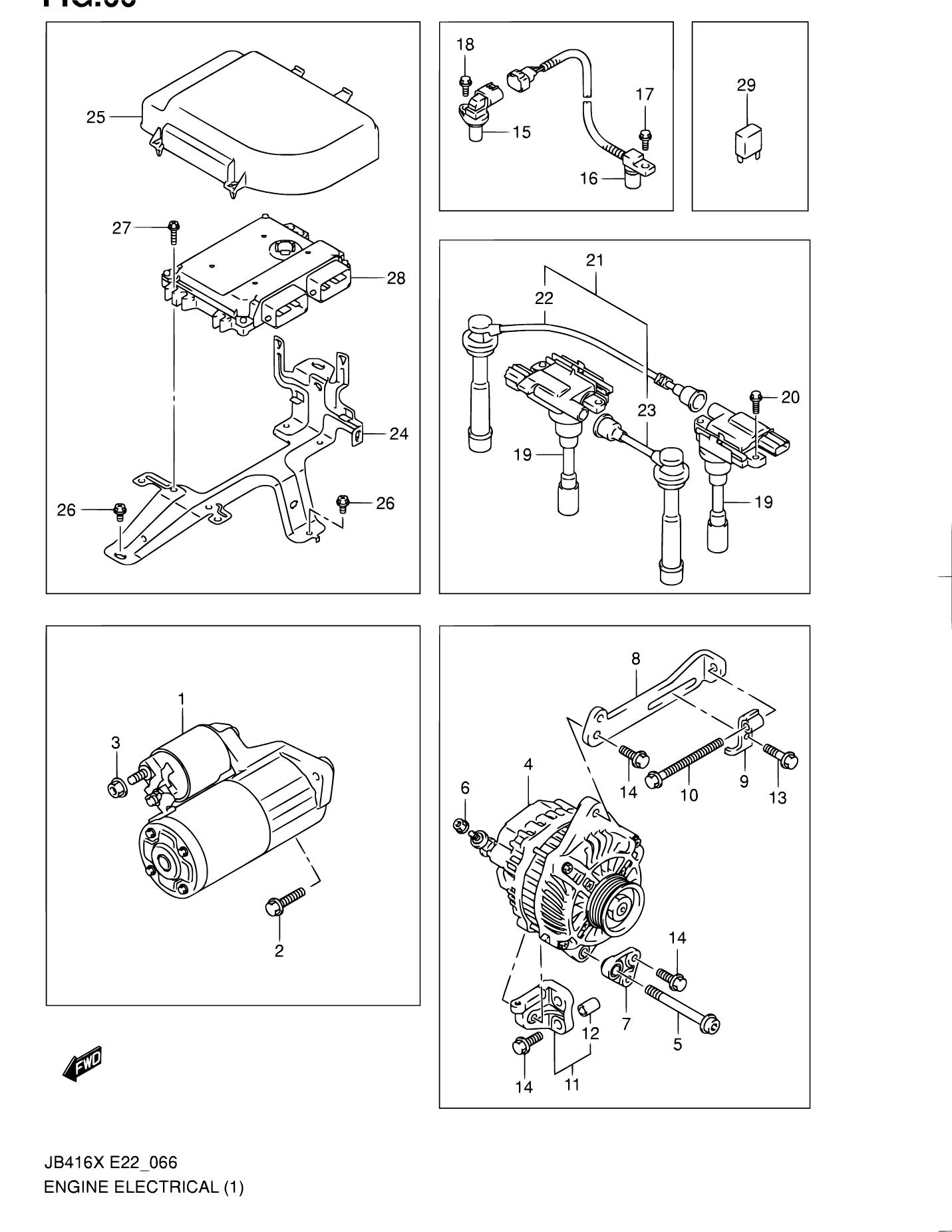

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
31100-63J00 |
MOTOR ASSY, STARTING |
|
1 |
| 2 |
01550-1085A |
BOLT |
|
2 |
| 3 |
08316-1008A |
NUT |
|
1 |
| 4 |
31400-65J10 |
GENERATOR ASSY |
|
1 |
| 5 |
07120-1085A |
BOLT |
|
1 |
| 6 |
08316-1006A |
NUT |
|
1 |
| 7 |
11550-64J01 |
BRACKET, GENERATOR NO.1 |
|
1 |
| 8 |
11560-64J00 |
ARM, GENERATOR ADJUSTING |
|
1 |
| 9 |
11562-64J00 |
ADJUSTER, GENERATOR |
|
1 |
| 10 |
11563-64J00 |
BOLT, GEN BELT ADJUSTING |
|
1 |
| 11 |
11570-64J00 |
BRACKET, GENERATOR NO.2 |
|
1 |
| 12 |
04211-11169 |
.PIN |
|
1 |
| 13 |
01550-0825A |
BOLT |
|
1 |
| 14 |
01550-0830A |
BOLT |
|
5 |
| 15 |
33220-63J10 |
SENSOR ASSY, CMP |
|
1 |
| 16 |
33220-63J00 |
SENSOR ASSY, CKP |
|
1 |
| 17 |
09103-06283 |
BOLT (6X16) |
|
1 |
| 18 |
09103-06283 |
BOLT (6X16) |
|
1 |
| 19 |
33400-65G01 |
COIL ASSY, IGNITION |
|
2 |
| 20 |
01550-0620A |
BOLT (6X20) |
|
4 |
| 21 |
33705-80G00 |
CORD SET, HT |
|
1 |
| 22 |
33730-80G00 |
.CORD, HT NO.2 |
|
1 |
| 23 |
33740-80G00 |
.CORD, HT NO.3 |
|
1 |
| 24 |
33924-65J00 |
BRACKET, FUEL INJECTION CONT |
|
1 |
| 25 |
33925-65J00 |
COVER, FUEL INJECTION CONTROL |
|
1 |
| 26 |
02162-0612A |
BOLT |
|
3 |
| 27 |
02162-0625A |
BOLT |
|
4 |
| 28 |
33920-64J01 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E02,E22,E54 |
1 |
| 28 |
33920-64J01 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E02,E22,E54 JSAJTA74V00105673~ JSAJTA74V60100001~ |
1 |
| 28 |
33920-64J21 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E09 |
1 |
| 28 |
33920-64J31 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E10 |
1 |
| 28 |
33920-64J11 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E24 |
1 |
| 28 |
33920-64J51 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E43 |
1 |
| 28 |
33920-64J61 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E50 |
1 |
| 28 |
33920-64J70 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E50:OBD |
1 |
| 28 |
33920-64J41 |
CONTROLLER, FUEL INJECTION |
TYPE 1:E96 |
1 |
| 28 |
33920-64J80 |
CONTROLLER, FUEL INJECTION |
TYPE 2:E02,E22,E53 |
1 |
| 28 |
33920-64JA0 |
CONTROLLER, FUEL INJECTION |
TYPE 2:E09 |
1 |
| 28 |
33920-64JB0 |
CONTROLLER, FUEL INJECTION |
TYPE 2:E10 |
1 |
| 28 |
33920-64J90 |
CONTROLLER, FUEL INJECTION |
TYPE 2:E24 |
1 |
| 28 |
33920-64JD0 |
CONTROLLER, FUEL INJECTION |
TYPE 2:E30,E43,E85 |
1 |
| 28 |
33920-64JE0 |
CONTROLLER, FUEL INJECTION |
TYPE 2:E50 |
1 |
| 28 |
33920-64JC0 |
CONTROLLER, FUEL INJECTION |
TYPE 2:E96 |
1 |
| 29 |
38860-76F01 |
RELAY ASSY |
|
3 |
