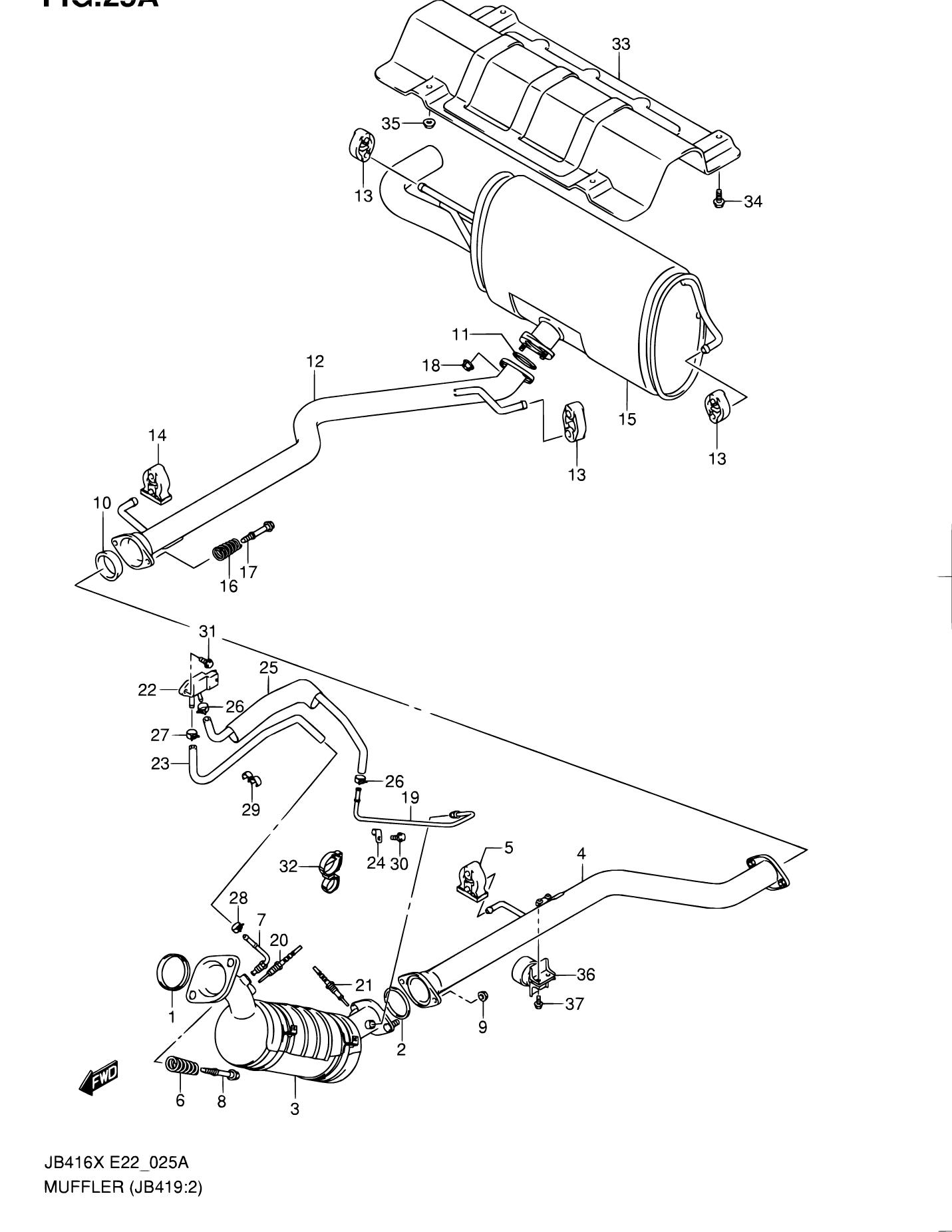

ГЛУШИТЕЛЬ (JB419XD: E02,E22,E53: TYPE 3)

ГЛУШИТЕЛЬ (JB419XD:E02,E22,E53:TYPE 3)

Выноска	Номер детали	Название детали	Примечания	Кол-во
1	14183-67J00	RING, SEAL		1
2	14184-67D00	GASKET		1
3	14190-67J20-H02	PIPE, EXH NO.1	SEE NOTE : NOTE : VEHICLE MANUFACTURER'S NAME : SUZUKI MAKE OF CATALYTIC CONVERTER (ENGINE MANUFACTURER'S NAME OR TRADE MARK) : SUZUKI ID NUMBER : 67J-C02 TYPES OF VEHICLE : JTA44V SUITABLE FOR OBD SYSTEM : YES	1
4	14250-67J10	PIPE, EXH NO.2		1
5	14281-65J11	MOUNTING		1
6	14492-67D00	SPRING		2
7	18595-67J00	PIPE, EXH PRESSURE		1
8	09119-10041	BOLT (10X65)		2
9	09159-10049	NUT		2
10	14183-65D00	RING, SEAL		1
11	14182-58B10	GASKET		1
12	14260-67J20	PIPE, EXH NO.3		1
13	14281-65J01	MOUNTING		3
14	14281-65J11	MOUNTING		1
15	14300-67J10	MUFFLER		1
16	14492-67D00	SPRING		2
17	09119-10041	BOLT (10X65)		2
18	09159-10049	NUT		2
19	14195-67J10	PIPE, EXH PRESSURE		1
20	14810-67J00	SENSOER, TEMP DPF INLET		1
21	14810-67J10	SENSOER, TEMP DPF OUTLET		1
22	18590-67JB0	SENSOER, DPF DIFF PRESSURE		1
23	18591-67J00	HOSE, DPF PRESS INLET		1
24	14196-67J00	CLAMP		2
25	18593-67J00	HOSE, DPF PRESS OUTLET NO.2		1
26	09401-11421	CLIP		2
27	09401-11421	CLIP		1
28	09401-13421	CLIP		1
29	09408-00043	CLAMP		1
30	01550-0610A	BOLT		2
31	01550-0616A	BOLT		1
32	09408-00228	CLAMP		1
33	14231-64J00	PANEL, HEAT PROTECT		1
34	02162-0612A	BOLT		2
35	08316-1006A	NUT		2
36	14255-67J00	DAMPER		1
37	01550-0820A	BOLT		2
