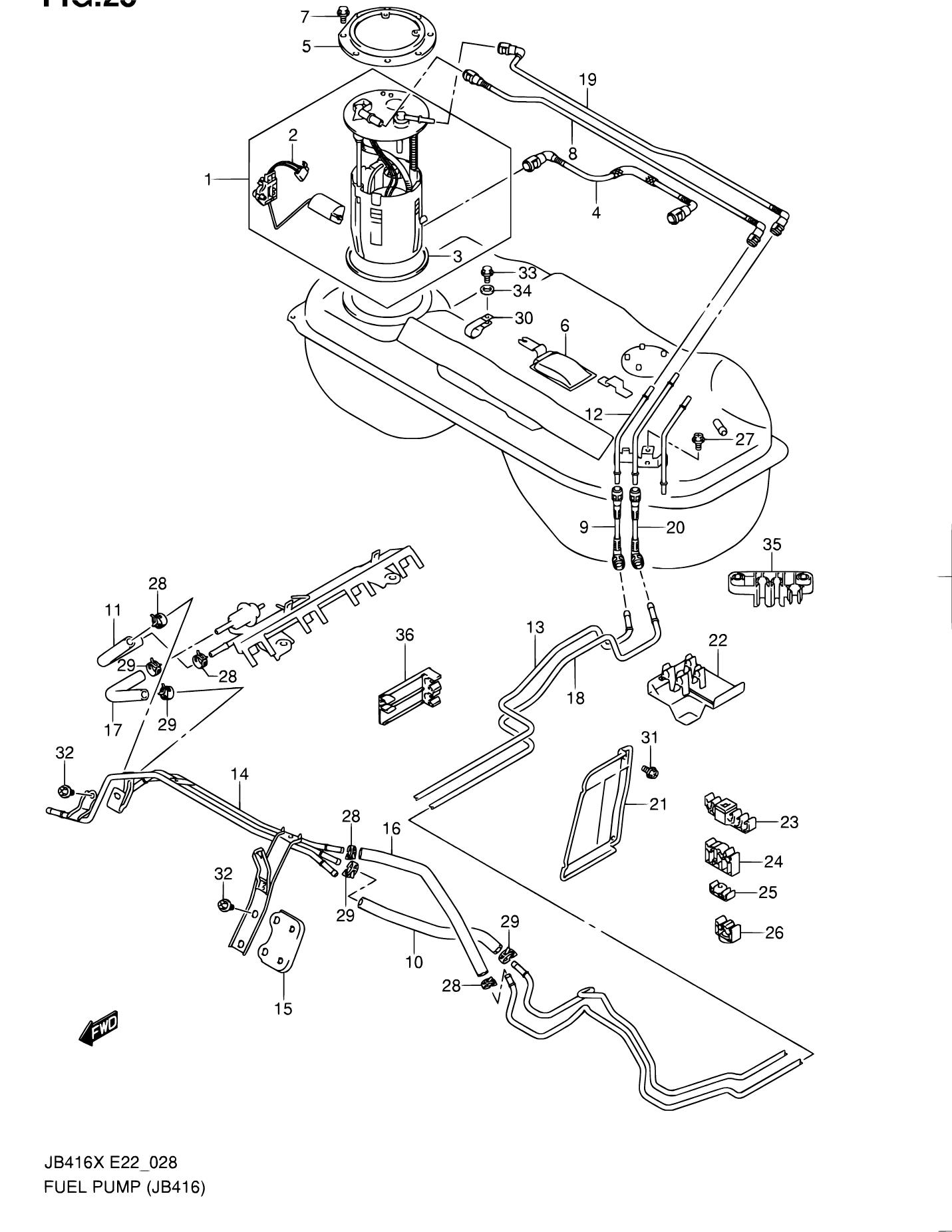

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
15100-64812 |
PUMP SET, FUEL |
E02,E09,E10,E22,E24,E30, E43,E53, E54,E85,E96 |
1 |
| 1 |
15100-64821 |
PUMP SET, FUEL |
E50 |
1 |
| 2 |
34810-64J10 |
.GAUGE ASSY |
|
1 |
| 3 |
15111-61J00 |
.GASKET |
|
1 |
| 4 |
15112-64J00 |
PIPE, FUEL SUCTION |
|
1 |
| 5 |
15121-61J00 |
PLATE |
|
1 |
| 6 |
15195-63J00 |
FILTER |
|
1 |
| 7 |
09103-06168 |
BOLT (6X10) |
|
8 |
| 8 |
15814-64J00 |
PIPE, FUEL (PUMP TO PIPE) |
TYPE 1 |
1 |
| 9 |
15815-65J00 |
PIPE, FUEL (FLOOR) |
TYPE 1 ->15815-65J01 USED WITH 15820-64J01 AND 15865-65J01 |
1 |
| 9 |
15815-65J01 |
PIPE, FUEL (FLOOR) |
TYPE 1 JSAJTA74V00101598~ JSAJTA74V60100001~ JS3TA74V 64100001~ |
1 |
| 10 |
15816-64J00 |
HOSE, FUEL (BODY TO ENG) |
|
1 |
| 11 |
15817-64J00 |
HOSE, FUEL (ENG SIDE) |
|
1 |
| 12 |
15820-64J00 |
PIPE ASSY, FUEL TANK SIDE |
TYPE 1 ->15820-64J01 USED WITH 15815-65J01 AND 15865-65J01 |
1 |
| 12 |
15820-64J01 |
PIPE ASSY, FUEL TANK SIDE |
TYPE 1 JSAJTA74V00101598~ JSAJTA74V60100001~ JS3TA74V 64100001~ |
1 |
| 13 |
15821-64J02 |
PIPE, FUEL |
|
1 |
| 14 |
15840-64J01 |
PIPE, FUEL (ENG SIDE) |
|
1 |
| 15 |
15841-64J00 |
BRACKET |
|
1 |
| 16 |
15855-64J00 |
HOSE, FUEL RTN (ENG TO BODY) |
|
1 |
| 17 |
15856-64J00 |
HOSE, FUEL RTN (ENG SIDE) |
|
1 |
| 18 |
15861-64J02 |
PIPE, FUEL RTN |
|
1 |
| 19 |
15864-64J00 |
PIPE, FUEL RTN (PIPE TO PUMP) |
TYPE 1 |
1 |
| 20 |
15865-65J00 |
PIPE, FUEL RTN (FLOOR) |
TYPE 1 ->15865-65J01 USED WITH 15815-65J01 AND 15820-64J01 |
1 |
| 20 |
15865-65J01 |
PIPE, FUEL RTN (FLOOR) |
TYPE 1 JSAJTA74V00101598~ JSAJTA74V60100001~ JS3TA74V 64100001~ |
1 |
| 21 |
15871-65J00 |
COVER |
|
1 |
| 22 |
15872-65J00 |
PROTECTOR |
|
1 |
| 23 |
15892-65J00 |
CLAMP |
|
5 |
| 24 |
15893-65J00 |
CLAMP |
|
1 |
| 25 |
15894-65J00 |
CLAMP |
|
1 |
| 26 |
15895-65J00 |
CLAMP |
|
1 |
| 27 |
09103-06168 |
BOLT (6X10) |
|
2 |
| 28 |
09401-10409 |
CLIP |
|
4 |
| 29 |
09401-11420 |
CLIP |
|
4 |
| 30 |
09403-14413 |
CLAMP |
TYPE 1 |
1 |
| 31 |
02162-0612A |
BOLT |
|
2 |
| 32 |
02162-0612A |
BOLT |
|
4 |
| 33 |
09115-06005 |
BOLT (6X16) |
|
1 |
| 34 |
09160-06126 |
WASHER (6.5X14X1.6) |
|
1 |
| 36 |
15875-65J00 |
COVER, PIPE |
|
1 |
