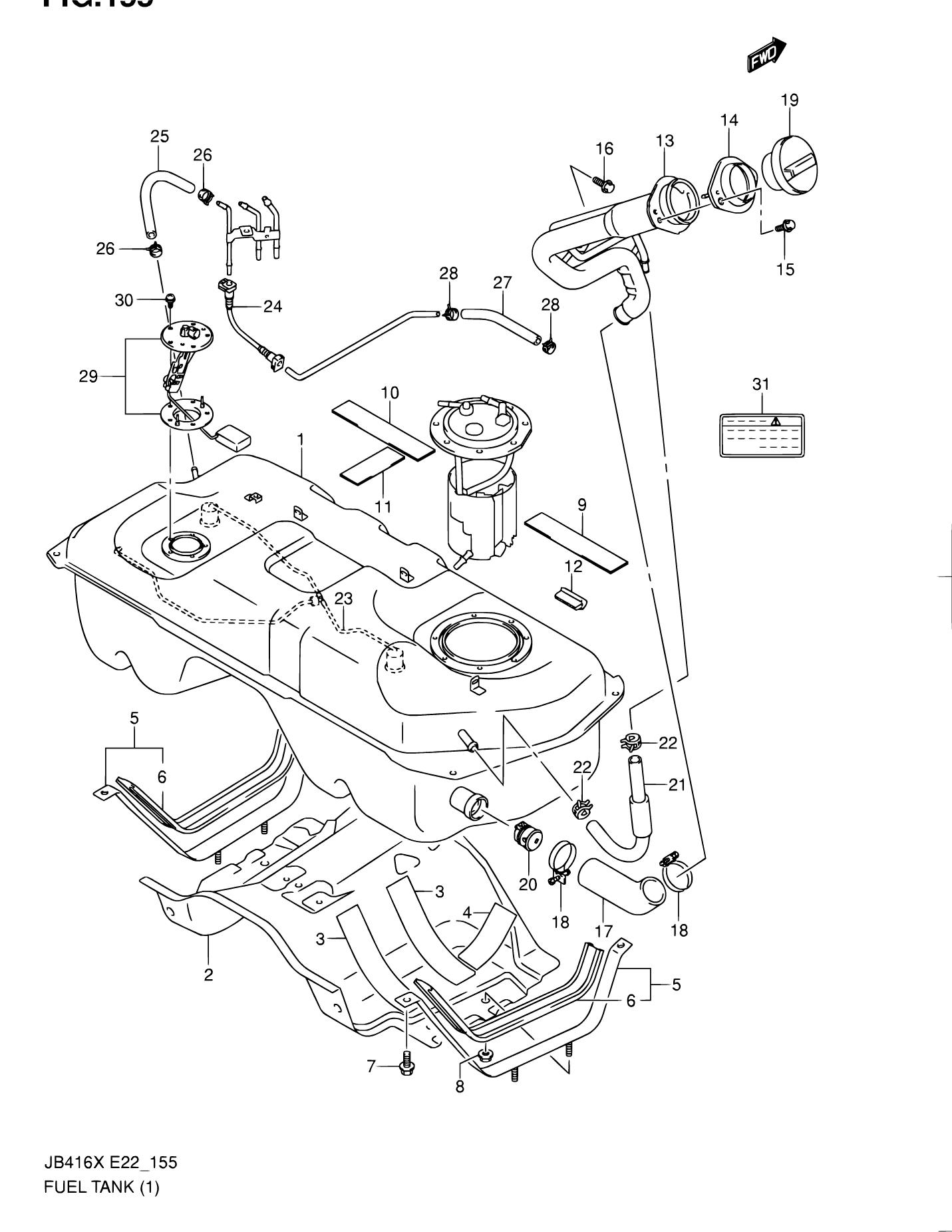

ТОПЛИВНЫЙ БАК (JB416X)

ТОПЛИВНЫЙ БАК (JB416X)

Выноска	Номер детали	Название детали	Примечания	Кол-во
1	89101-64811	TANK ASSY, FUEL		1
2	89190-64J00	PROTECTOR, FUEL TANK		1
3	89381-63J00	.PAD, NO.1		4
4	89381-63J00	.PAD, NO.2		2
5	89360-64J00	BELT, FUEL TANK		2
6	89385-63J00	.PAD		2
7	09118-10073	BOLT (10X30)		4
8	08316-1006A	NUT, FUEL TANK PROTECTOR		4
9	89381-63J00	PAD, FUEL TANK NO.1		2
10	89381-83J00	PAD, FUEL TANK		1
11	89381-63J00	PAD, FUEL TANK NO.2		8
12	89445-65J00	PROTECTOR, FUEL TANK		2
13	89201-64J00	NECK ASSY, FUEL FILLER	E02,E10,E22,E24,E30,E43,E53, E54, E85	1
13	89201-64J10	NECK ASSY, FUEL FILLER	E09,E50,E96	1
14	89285-58J00	PACKING, FUEL FILLER		1
15	09116-05014	BOLT (5X20)		2
16	09103-06265	BOLT (6X12)		1
17	89241-65J00	HOSE, FUEL TANK FILLER		1
18	09400-45311	CLAMP		2
19	89260-65G10	CAP ASSY, FUEL FILLER	E02,E22,E24,E30,E53,E54	1
19	89260-50J00	CAP ASSY, FUEL FILLER	E09,E10,E43,E96	1
19	89260-65G80	CAP ASSY, FUEL FILLER	E50	1
20	89270-75F00	VALVE, FUEL TANK INLET		1
21	89290-64J00	HOSE, FUEL TANK BREATHER		1
22	09401-16403	CLIP		2
23	89401-64J00	VALVE ASSY, FUEL EVAP		1
24	89441-65J00	HOSE, EVAP PIPE OUTLET		1
25	09343-05552-600	HOSE, TANK TO EVAP PIPE	L:600->140 TYPE 1	1
26	09401-11415	CLIP		2
27	09355-54128-600	HOSE, PIPE TO CSTR	L:600->130	1
28	09401-11415	CLIP		2
29	34810-64J00	GAUGE ASSY, FUEL LEVEL		1
30	09136-05045	SCREW (5X10)		5
31	79115-80G00	LABEL, FUEL CAUTION		1
