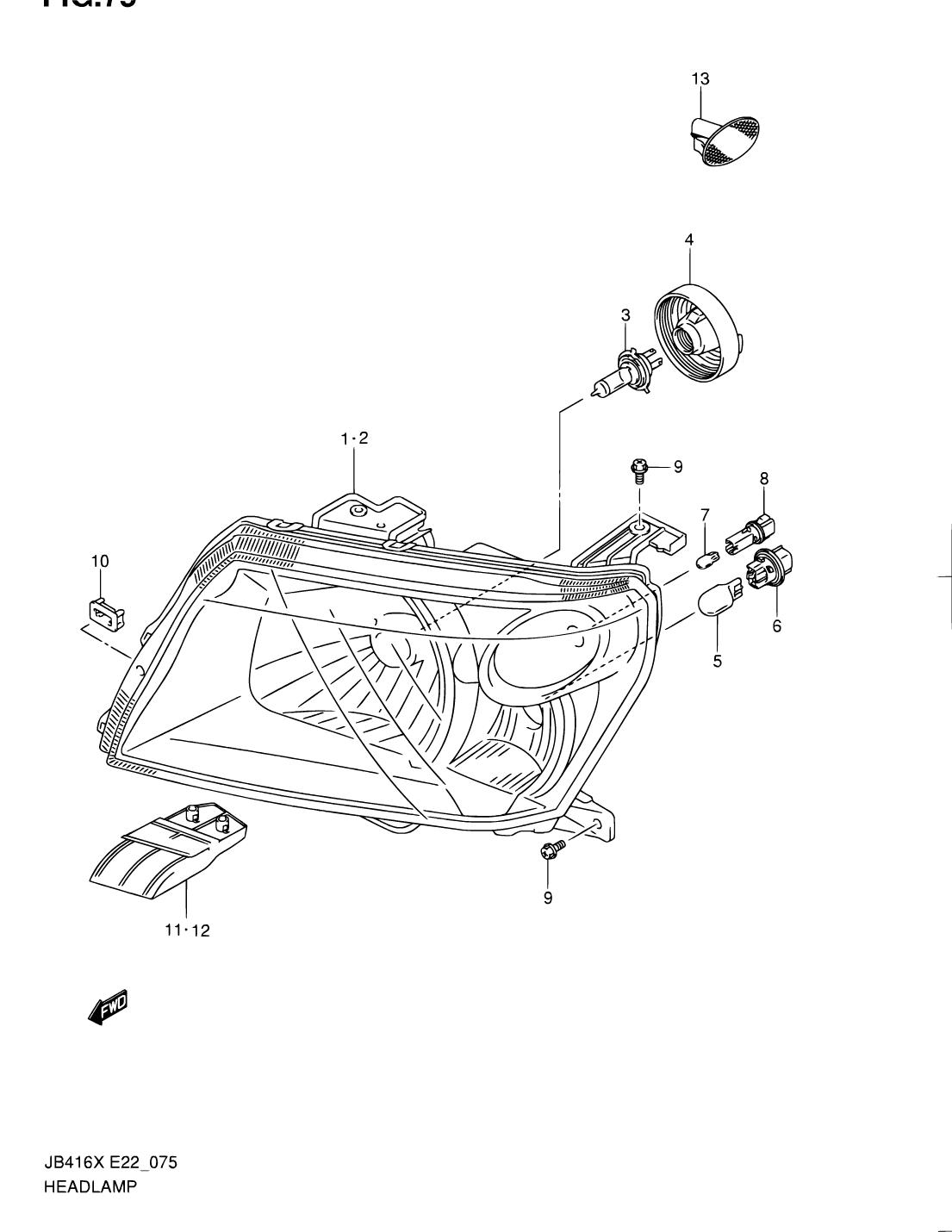

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
35120-64J30 |
UNIT, HEADLAMP RH |
LHD:N/HEADLAMP LEVELING |
1 |
| 1 |
35120-64J10 |
UNIT, HEADLAMP RH |
LHD:W/HEADLAMP LEVELING |
1 |
| 2 |
35320-64J30 |
UNIT, HEADLAMP LH |
LHD:N/HEADLAMP LEVELING |
1 |
| 2 |
35320-64J10 |
UNIT, HEADLAMP LH |
LHD:W/HEADLAMP LEVELING |
1 |
| 3 |
09471-12182 |
BULB (12V,60/55W H4) |
|
2 |
| 4 |
35179-64G00 |
COVER, SOCKET |
|
2 |
| 5 |
09471-12202 |
BULB (12V,21W) (AMBER) |
|
2 |
| 6 |
35118-75H20 |
SOCKET, TURNSIGNAL |
|
2 |
| 7 |
09471-12081 |
BULB (12V,5W) |
|
2 |
| 8 |
35118-76F00 |
SOCKET, POSITION LAMP |
|
2 |
| 9 |
09122-76001 |
SCREW (6X16) |
|
6 |
| 10 |
35153-73H00 |
GROMMET, HEADLAMP |
|
2 |
| 11 |
35130-65J00 |
HOLDER ASSY, HEADLAMP UNIT RH |
|
1 |
| 12 |
35330-65J00 |
HOLDER ASSY, HEADLAMP UNIT LH |
|
1 |
| 13 |
36410-63J20 |
LAMP ASSY, TURNSIGNAL |
|
2 |
