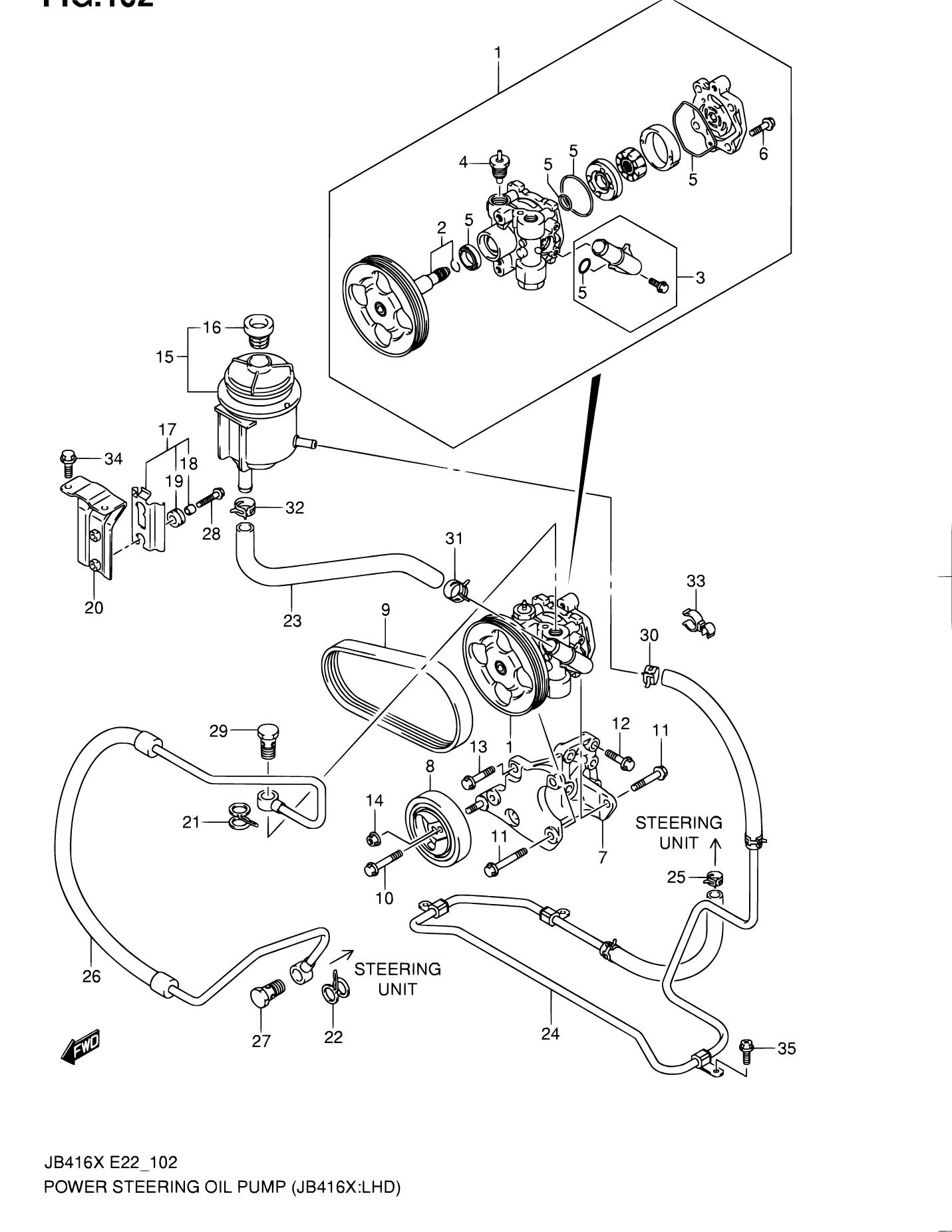

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
49100-64J00 |
PUMP ASSY, POWER STEERING |
|
1 |
| 2 |
49111-64J00 |
.SHAFT SET |
|
1 |
| 3 |
49112-64J00 |
.CONNECTOR SET |
|
1 |
| 4 |
49113-65D00 |
.TERMINAL SET |
|
1 |
| 5 |
49114-73J00 |
.SEAL SET |
|
1 |
| 6 |
49115-56B30 |
.BOLT SET |
|
1 |
| 7 |
49120-69G00 |
BRACKET ASSY, POWER STEERING |
|
1 |
| 8 |
49160-64J01 |
PULLEY, BELT TENSION |
|
1 |
| 9 |
49181-64J00 |
BELT |
N/AIR CON |
1 |
| 10 |
09103-08071 |
BOLT (8X36) |
|
1 |
| 11 |
01550-0825A |
BOLT |
|
3 |
| 12 |
01550-0835A |
BOLT |
|
4 |
| 13 |
01550-0850A |
BOLT |
|
2 |
| 14 |
08316-1008A |
NUT |
|
1 |
| 15 |
49140-65J00 |
TANK ASSY, POWER STEERING OIL |
|
1 |
| 16 |
49142-65D00 |
.CAP, OIL TANK |
|
1 |
| 17 |
49150-60G00 |
BRACKET ASSY, PS TANK |
|
1 |
| 18 |
09180-06038 |
.SPACER |
|
2 |
| 19 |
09320-08501 |
.CUSHION |
|
2 |
| 20 |
49152-65J00 |
BRACKET, PS TANK NO.2 |
|
1 |
| 21 |
49211-63G03 |
GASKET, PRESSURE PIPE |
|
1 |
| 22 |
49211-65J00 |
GASKET, GEAR BOX |
|
1 |
| 23 |
49214-64J00 |
HOSE, SUCTION |
|
1 |
| 24 |
49220-65J50 |
HOSE ASSY, RETURN |
|
1 |
| 25 |
49225-65D10 |
CLAMP, RETURN GEAR SIDE |
|
1 |
| 26 |
49230-64J50 |
HOSE, PRESSURE |
|
1 |
| 27 |
49237-65J00 |
BOLT, UNION GEAR BOX |
|
1 |
| 28 |
09136-06133 |
BOLT (6X16) |
|
2 |
| 29 |
09360-16003 |
UNION BOLT (16X29) |
|
1 |
| 30 |
09401-15404 |
CLAMP |
|
1 |
| 31 |
09401-20405 |
CLAMP |
|
1 |
| 32 |
09401-20405 |
CLAMP |
|
1 |
| 33 |
09408-00107 |
CLAMP |
|
1 |
| 34 |
02162-0612A |
BOLT |
|
2 |
| 35 |
02162-0612A |
BOLT |
|
2 |
