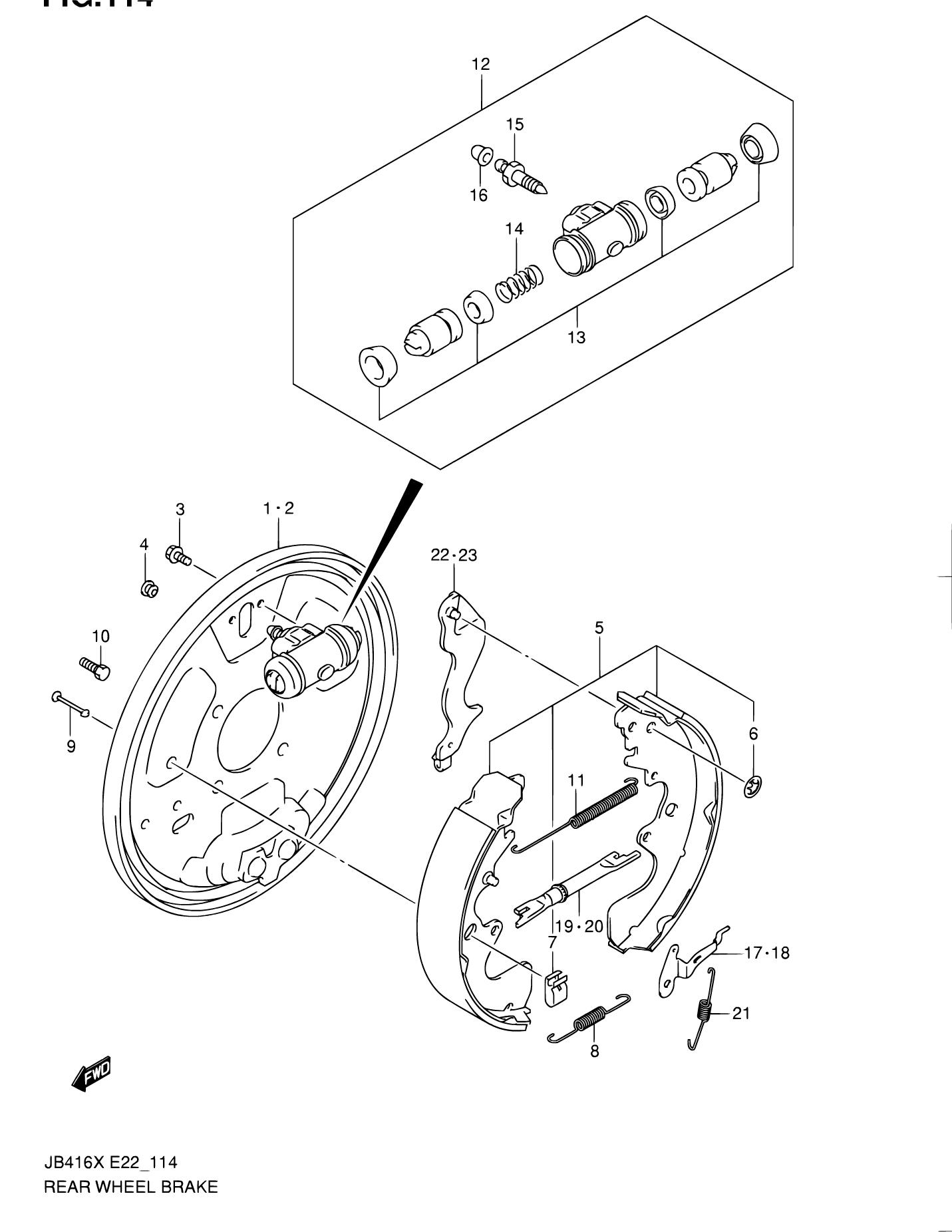

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
53110-65J02 |
PLATE ASSY, BACKING RH |
|
1 |
| 2 |
53120-65J02 |
PLATE ASSY, BACKING LH |
|
1 |
| 3 |
53131-52D00 |
BOLT, WHEEL CYLINDER |
|
4 |
| 4 |
53141-65D00 |
PLUG, BACKING PLATE |
|
2 |
| 5 |
53200-65J01 |
SHOE SET, BRAKE |
|
1 |
| 6 |
53753-67H00 |
.PUSH NUT, PARKING LEVER |
|
2 |
| 7 |
53243-65D00 |
.SPRING, SHOE HOLD DOWN |
|
4 |
| 8 |
53231-56B00 |
SPRING, SHOE RETURN LOWER |
|
2 |
| 9 |
53241-82030 |
PIN, SHOE HOLD DOWN |
|
4 |
| 10 |
53247-52D00 |
BOLT, SERRATION |
|
2 |
| 11 |
53331-65J00 |
SPRING, SHOE RETURN UPPER |
|
2 |
| 12 |
53402-65D00 |
CYLINDER ASSY, REAR WHEEL |
|
2 |
| 13 |
53400-60830 |
.PISTON CUP/BOOT SET |
|
2 |
| 14 |
53441-56B00 |
.SPRING, WHEEL CYLINDER |
|
2 |
| 15 |
55473-82031 |
.PLUG BLEEDER (7X1.0) |
|
2 |
| 16 |
55156-66310 |
.CAP, BLEEDER PLUG |
|
2 |
| 17 |
53781-65J00 |
LEVER, PARKING ADJUSTER RH |
|
1 |
| 18 |
53782-65J00 |
LEVER, PARKING ADJUSTER LH |
|
1 |
| 19 |
53810-65J00 |
ADJUSTER ASSY, RH |
|
1 |
| 20 |
53850-65J00 |
ADJUSTER ASSY, LH |
|
1 |
| 21 |
53824-65D00 |
SPRING, ADJUSTER |
|
2 |
| 22 |
53720-65J00 |
LEVER ASSY, PARKING SHOE RH |
|
1 |
| 23 |
53730-65J00 |
LEVER ASSY, PARKING SHOE LH |
|
1 |
