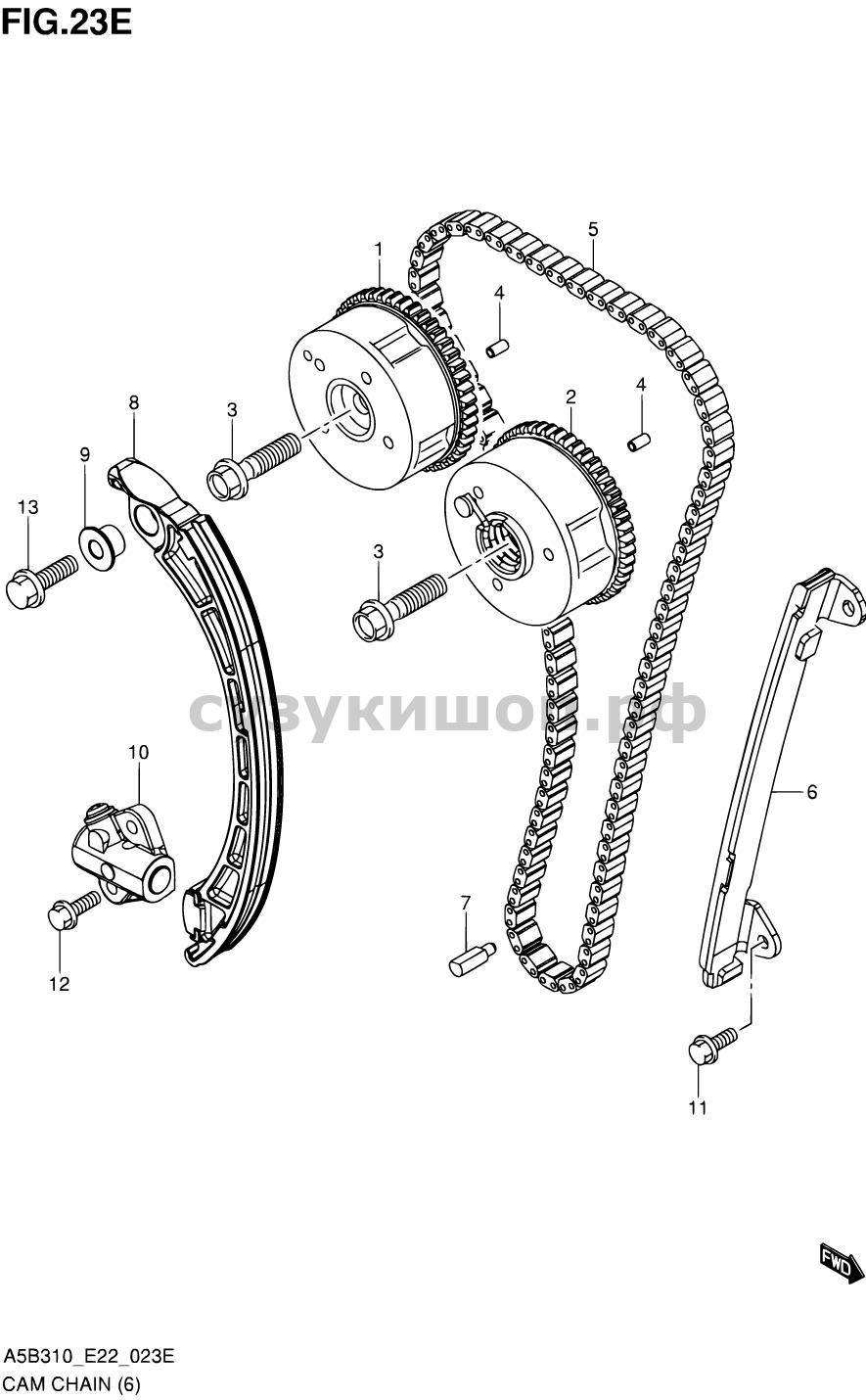

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
12740-73KA0 |
SPROCKET ASSY, CAMSHAFT TIMING |
|
1 |
| 2 |
12750-69LA0 |
SPROCKET, CAMSHAFT TIMING EXH |
|
1 |
| 3 |
12753-69L00 |
BOLT, CAMSHAFT SPROCKET |
|
2 |
| 4 |
09206-05001 |
PIN (3.4X5X10) |
|
2 |
| 5 |
12761-69L00 |
CHAIN, TIMING |
|
1 |
| 6 |
12771-69L00 |
GUIDE, TIMING CHAIN |
|
1 |
| 7 |
12781-69G00 |
JET, TIMING CHAIN |
|
1 |
| 8 |
12811-69L00 |
TENSIONER, TIMING CHAIN |
|
1 |
| 9 |
12812-73G10 |
SPACER, TIMING CHAIN TENSIONER |
|
1 |
| 10 |
12831-69L00 |
ADJUSTER ASSY, TENSIONER |
|
1 |
| 11 |
01550-0616A |
BOLT |
|
2 |
| 12 |
01550-0620A |
BOLT |
|
2 |
| 13 |
01550-0825A |
BOLT |
|
1 |
