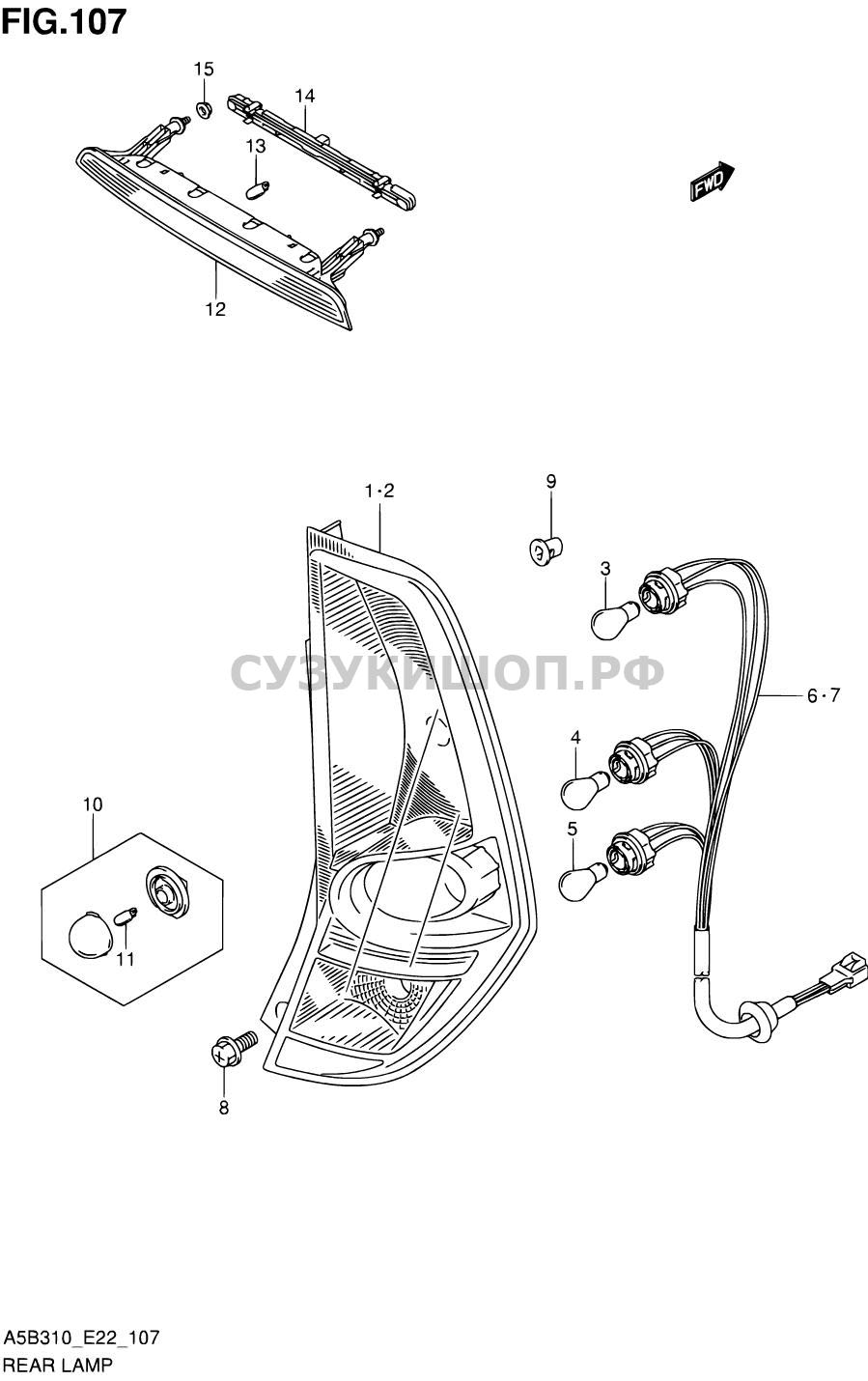

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
35650-51K00 |
LAMP UNIT, RR COMBINATION RH |
LHD |
1 |
| 2 |
35670-51K10 |
LAMP UNIT, RR COMBINATION LH |
LHD |
1 |
| 3 |
09471-12083 |
BULB (12V,21/5W) |
|
2 |
| 4 |
09471-12186 |
BULB (12V21W) (AMBER) |
|
2 |
| 5 |
09471-12045 |
BULB (12V,21W) |
|
2 |
| 6 |
35658-51K00 |
SOCKET & CORD ASSY |
FOR 35650-51K00 FOR 35670-51K00 |
1 |
| 7 |
35678-51K00 |
SOCKET & CORD ASSY |
FOR 35650-51K10 FOR 35670-51K10 |
1 |
| 8 |
02162-0616E |
SCREW |
|
4 |
| 9 |
35153-54G00 |
GROMMET, RR COMB LAMP UPPER |
|
4 |
| 10 |
35910-75F30 |
LAMP ASSY, LICENSE |
|
2 |
| 11 |
09471-12081 |
.BULB (12V,5W) |
|
2 |
| 12 |
35820-51K00 |
LAMP UNIT, HIGH MOUNT STOP |
|
1 |
| 13 |
09471-12216 |
BULB (12V,5W) |
|
4 |
| 14 |
35817-51K00 |
COVER, BULB |
|
1 |
| 15 |
09159-06100 |
NUT |
|
2 |
