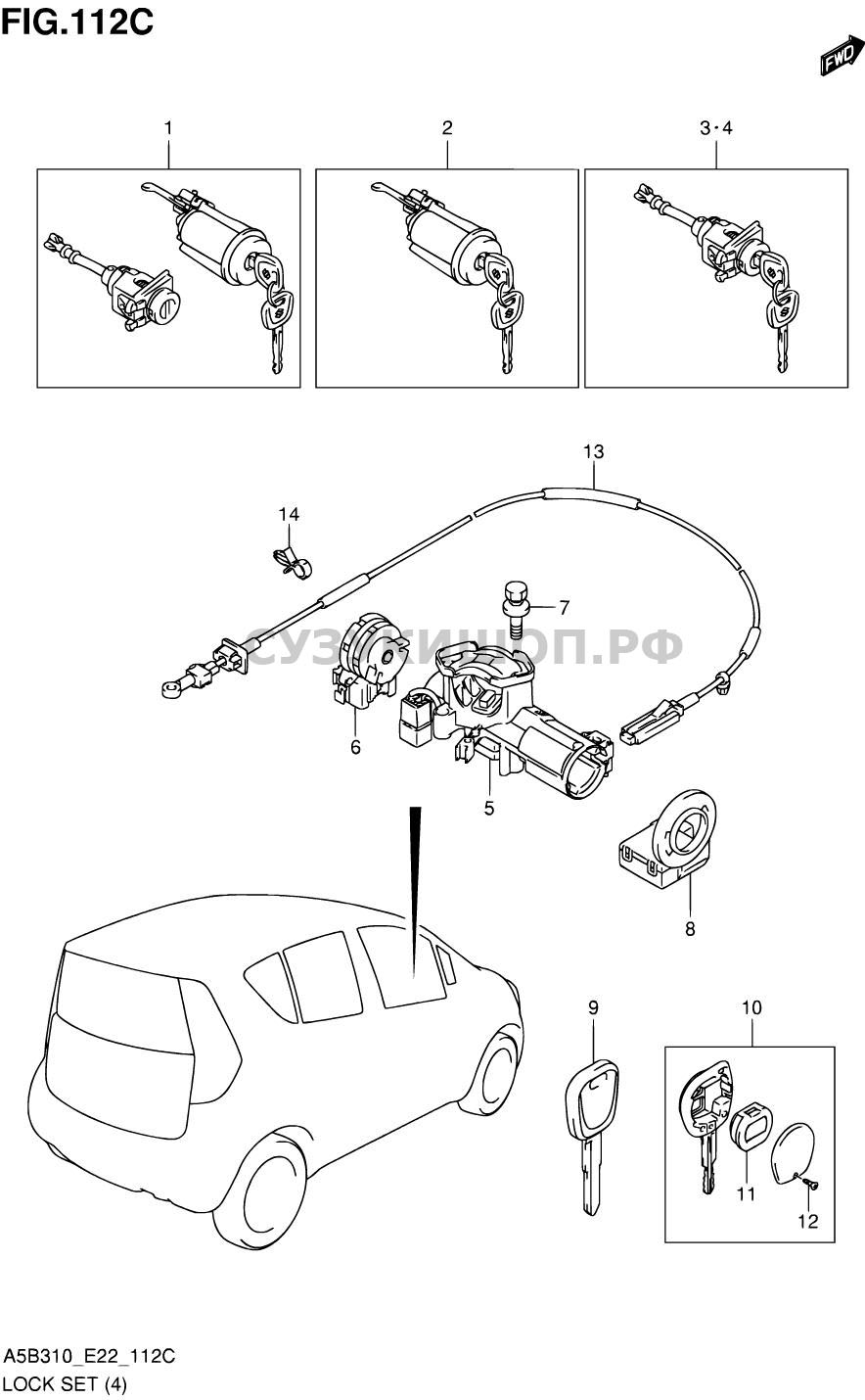

| Выноска |
Номер детали |
Название детали |
Примечания |
Кол-во |
| 1 |
37109-58840 |
LOCK SET |
(A5B310,A5B412):MT N/KEYLESS ENTRY:GA:LHD N/POWER DOOR LOCK |
1 |
| 1 |
37107-63821 |
LOCK SET |
(A5B310,A5B412):MT W/KEYLESS ENTRY (GL,GLS,GLS:66KW):LHD |
1 |
| 1 |
37107-63841 |
LOCK SET |
A5B412:AT:LHD |
1 |
| 2 |
37108-58860 |
LOCK ASSY, STEERING |
MT |
1 |
| 2 |
37108-58830 |
LOCK ASSY, STEERING |
AT |
1 |
| 4 |
82280-62811 |
CYLINDER, FR DOOR LATCH LH |
LHD |
1 |
| 5 |
37101-62JA0 |
BODY, STEERING LOCK |
MT:GA:N/POWER DOOR LOCK |
1 |
| 5 |
37101-62JB0 |
BODY, STEERING LOCK |
MT:GA:W/POWER DOOR LOCK MT:(GL,GLS,GLS:66KW) |
1 |
| 5 |
37101-62JC0 |
BODY, STEERING LOCK |
AT |
1 |
| 6 |
37111-62JA0 |
SWITCH |
|
1 |
| 7 |
37152-62JA0 |
BOLT, STEERING LOCK |
|
2 |
| 8 |
33970-62J00 |
CONTROLLER ASSY, IMMOBILIZER |
|
1 |
| 9 |
37145-57JC0 |
KEY, BLANK |
OPT (A5B310,A5B412):N/KEYLESS ENTRY |
1 |
| 10 |
37145-55A20 |
KEY, BLANK (W/TRANSMITTER) |
OPT (A5B310,A5B412):W/KEYLESS ENTRY |
1 |
| 11 |
37182-62JV0 |
.SWITCH ASSY, TRANSMITTER |
W/KEYLESS ENTRY |
1 |
| 12 |
37186-81A00 |
.SCREW |
W/KEYLESS ENTRY |
1 |
| 13 |
28551-51K30 |
CABLE, KEY INTERLOCKING |
AT |
1 |
| 14 |
09403-09405 |
CLAMP |
AT:LHD |
1 |
