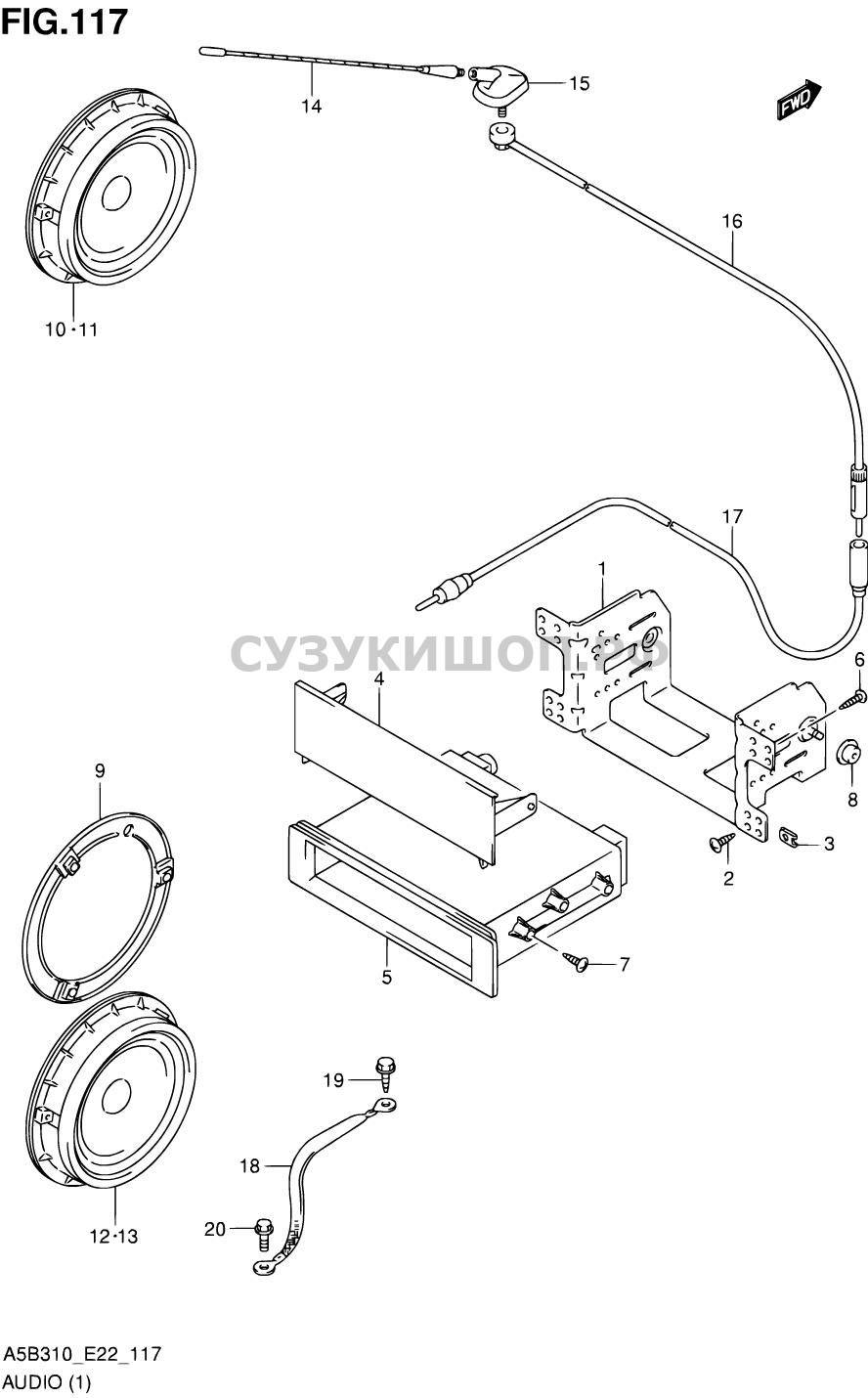

АУДИОСИСТЕМА (N/TUNER)

АУДИОСИСТЕМА (N/TUNER)

Выноска	Номер детали	Название детали	Примечания	Кол-во
1	39321-51K00	BRACKET, TUNER		1
2	03541-0516A	SCREW		4
3	09148-05045	NUT		4
4	39161-65J00	COVER, RADIO HOLE		1
5	39182-65J01	POCKET, TUNER		1
6	03241-0512A	SCREW		4
7	03541-0512A	SCREW		4
8	34955-51K00	BUSH, TUNER BRACKET		2
9	39350-63J20	COVER, SPEAKER HOLE	N/SPEAKER	4
10	39102-68L00	SPEAKER ASSY, FRONT RH	W/SPEAKER	1
11	39102-68L00	SPEAKER ASSY, FRONT LH	W/SPEAKER	1
12	39102-68L00	SPEAKER ASSY, REAR RH	W/SPEAKER	1
13	39102-68L00	SPEAKER ASSY, REAR LH	W/SPEAKER	1
14	39251-51K10	ROD, ANTENNA		1
15	39253-86G00	BASE, ANTENNA		1
16	39271-51K00	FEEDER, ROOF		1
17	39270-51K00	FEEDER, INSTRUMENT PANEL		1
18	39312-78F20	WIRE, NOISE SUPPRESSOR	TYPE 4	1
19	09115-06005	BOLT (6X16)		1
20	09103-06168	BOLT (6X10)	A5B310,A5B412	1
