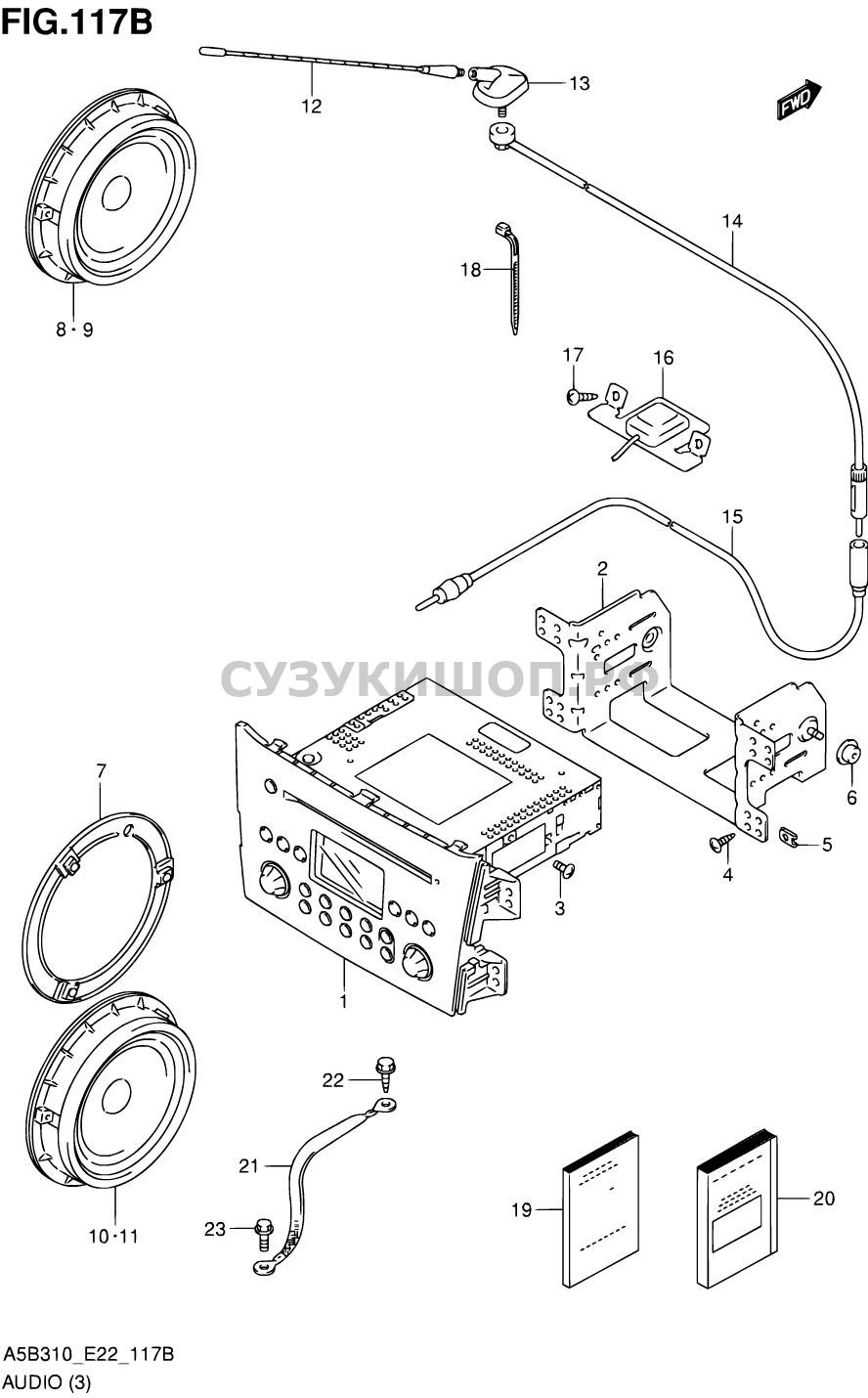

АУДИОСИСТЕМА (W/NAVIGATION)

АУДИОСИСТЕМА (W/NAVIGATION)

Выноска	Номер детали	Название детали	Примечания	Кол-во
1	39101-51KA0-FUA	UNIT ASSY, NAVIGATION		1
2	39321-51K10	BRACKET, TUNER		1
3	02142-0506A	SCREW		4
4	03541-0516A	SCREW		4
5	09148-05045	NUT		4
6	34955-51K00	BUSH, TUNER BRACKET		2
7	39350-63J20	COVER, SPEAKER HOLE	N/SPEAKER	4
8	39102-68L00	SPEAKER ASSY, FRONT RH	W/SPEAKER	1
9	39102-68L00	SPEAKER ASSY, FRONT LH	W/SPEAKER	1
10	39102-68L00	SPEAKER ASSY, REAR RH	W/SPEAKER	1
11	39102-68L00	SPEAKER ASSY, REAR LH	W/SPEAKER	1
12	39251-51K10	ROD, ANTENNA		1
13	39253-86G00	BASE, ANTENNA		1
14	39271-51K00	FEEDER, ROOF		1
15	39270-51K00	FEEDER, INSTRUMENT PANEL		1
16	39950-51KA0	ANTENNA ASSY, GPS		1
17	03541-0516A	SCREW		2
18	09407-14403	CLAMP		1
19	39915-62JA5	CD, NAVIGATION		1
20	39103-62JC1	MANUAL, NAVIGATION		1
21	39312-78F20	WIRE, NOISE SUPPRESSOR	TYPE 4	1
22	09115-06005	BOLT (6X16)		1
23	09103-06168	BOLT (6X10)	A5B310,A5B412	1
