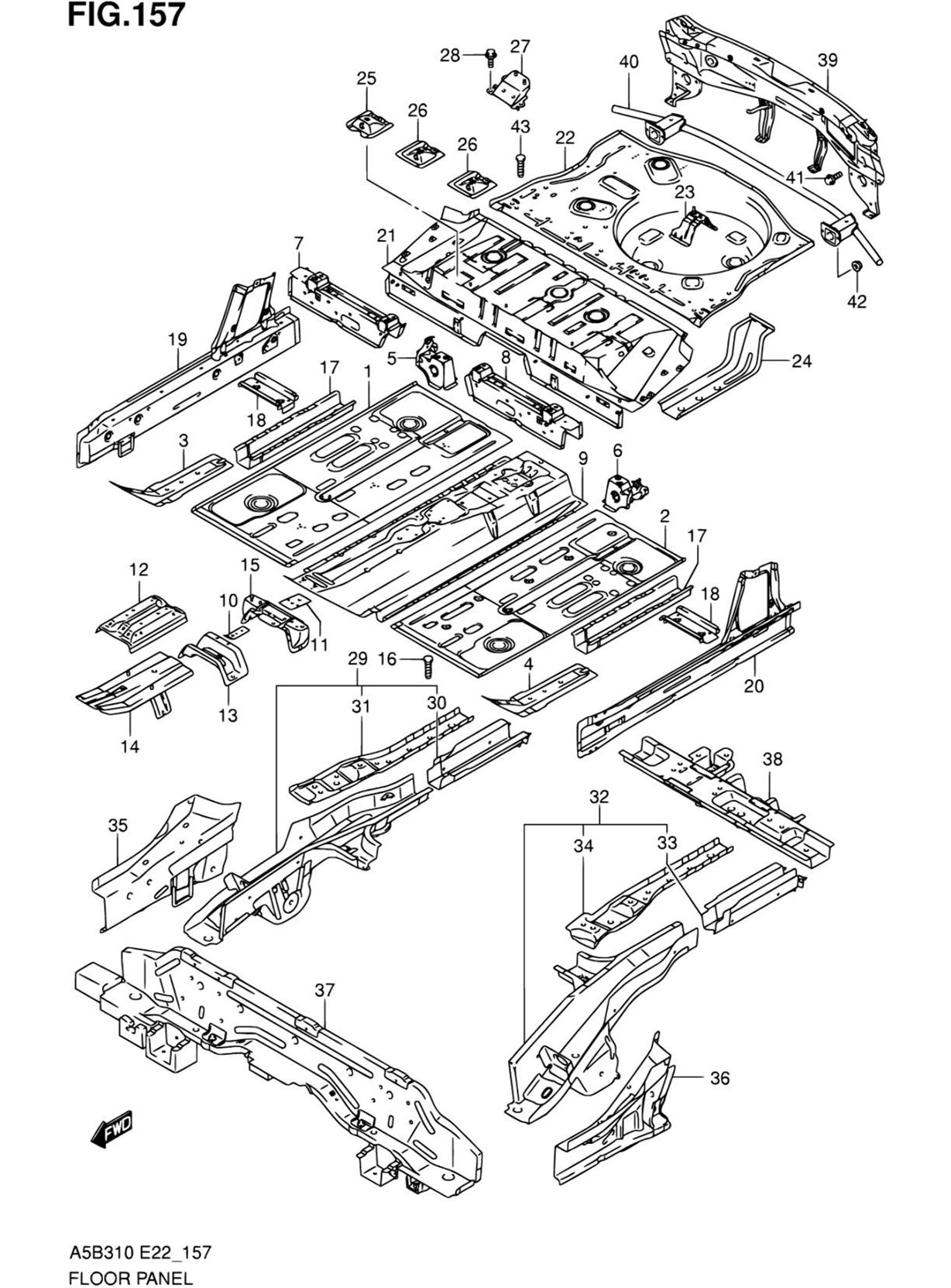

| Выноска |
Номер детали |
Название детали |
Примечание |
Кол-во |
| 1 |
61111-51K00 |
PAN MAIN FLOOR RH |
|
1 |
| 2 |
61161-51K00 |
PAN MAIN FLOOR LH |
|
1 |
| 3 |
61112-51K00 |
RENF MAIN FLOOR RH |
|
1 |
| 4 |
61162-51K00 |
RENF MAIN FLOOR LH |
|
1 |
| 5 |
61120-51K00 |
BRACKET FR SEAT RR OUT RH |
|
1 |
| 6 |
61170-51K00 |
BRACKET FR SEAT RR OUT LH |
|
1 |
| 7 |
61130-51K10 |
CROSSMEMBER FLR PAN UPR RH |
TYPE 2,3,4 |
1 |
| 8 |
61180-51K10 |
CROSSMEMBER FLR PAN UPR LH |
TYPE 2,3,4 |
1 |
| 9 |
61211-51K00 |
TUNNEL MAIN FLOOR |
N/DPF |
1 |
| 9 |
61211-51K10 |
TUNNEL MAIN FLOOR |
W/DPF |
1 |
| 10 |
61212-63J01 |
RENF PARKING LEVER |
|
1 |
| 11 |
61213-63J00 |
RENF PARKING CABLE |
|
1 |
| 12 |
61216-51K00 |
BRACKET SHIFT LEVER |
|
1 |
| 13 |
61221-63J10 |
BRACE MAIN FLOOR TUNNEL |
|
1 |
| 14 |
61250-62J00 |
RANF MAIN FLOOR TUNNEL |
|
1 |
| 15 |
61230-51K00 |
BRACKET FR SEAT RR INSIDE |
|
1 |
| 16 |
09119-05018 |
STUD BOLT |
|
7 |
| 17 |
61241-51K00 |
MEMBER FLOOR SIDE REAR |
|
2 |
| 18 |
61242-63J00 |
CROSSMEMBER FLR PAN LWR |
|
2 |
| 19 |
61310-51K00 |
PANEL SIDE SILL INNER RH |
|
1 |
| 20 |
61320-51K00 |
PANEL SIDE SILL INNER LH |
|
1 |
| 21 |
61511-62J00 |
PANEL RR FLOOR FR |
|
1 |
| 22 |
61512-51K00 |
PANEL RR FLOOR RR |
|
1 |
| 23 |
61513-63J00 |
BRACKET SPARE TIRE |
|
1 |
| 24 |
61550-63J00 |
HOOK TOWING REAR |
|
1 |
| 25 |
61514-51K00 |
BRACKET RR SEAT RH |
|
1 |
| 26 |
61515-51K00 |
BRACKET RR SEAT LH |
|
2 |
| 27 |
61541-51K00 |
BRACKET RR SEAT RR CTR |
|
1 |
| 28 |
01551-1020A |
BOLT |
|
4 |
| 29 |
62100-51K00 |
MEMBER RR FLOOR SIDE RH |
|
1 |
| 30 |
62112-51K00 |
MEMBER REAR FLOOR SIDE |
|
1 |
| 31 |
62127-51K00 |
REINF REAR FLOOR SIDE RR |
|
1 |
| 32 |
62300-51K00 |
MEMBER RR FLOOR SIDE LH |
|
1 |
| 33 |
62312-51K00 |
MEMBER REAR FLOOR SIDE RR LH |
|
1 |
| 34 |
62327-51K00 |
REINF REAR FLOOR SIDE RR LH |
|
1 |
| 35 |
62210-51K00 |
COMPARTMENT RR FLR SIDE RH |
|
1 |
| 36 |
62410-51K00 |
COMPARTMENT RR FLR SIDE LH |
|
1 |
| 37 |
62600-62J01 |
CROSSMEMBER RR FLOOR |
|
1 |
| 38 |
62700-51K10 |
CROSSMEMBER RR FLOOR CTR |
|
1 |
| 39 |
65500-51K10 |
PANEL BACK |
TYPE 3 N/KEYLESS START FROM TSMEXB22S00634320 FROM TSMEXB32S00634322 FROM TSMEXB82S00638142 TYPE 4 |
1 |
| 39 |
65500-85L00 |
PANEL BACK |
W/KEYLESS START |
1 |
| 40 |
65560-51K00 |
MEMBER REAR BUMPER |
|
1 |
| 41 |
01550-0612A |
BOLT |
|
4 |
| 42 |
08316-1006A |
NUT |
|
4 |
| 43 |
09119-05018 |
STUD BOLT |
|
4 |
